Flood Monitoring
While some areas are more prone to flooding than others, the establishment of flood monitoring systems near every major river or water body provides important information that helps protect property and lives. Of course, the most effective flood monitoring systems go beyond the installation of sensors and telemetry equipment. They are selected and maintained by qualified personnel and use carefully designed procedures to predict floods, including timing and severity.
An effective flood monitoring system should be based on the regular recording of local precipitation, water level and runoff data. This can be done by routine monitoring, through local visits of the measuring points. However, a real-time monitoring system with telemetry can make data collection much easier - and in many cases more cost-effective. At the same time, such solutions enable the fastest possible response through local emergency authorities in the case of a flood event.
OTT water level sensors and continuous flow sensors, paired with telemetry technology and OTT Hydrosystems are able to measure, collect, and transmit water level and velocity data in real-time to determine the peak level or flow during flood events, and alert local water and emergency authorities if a certain threshold is breached.

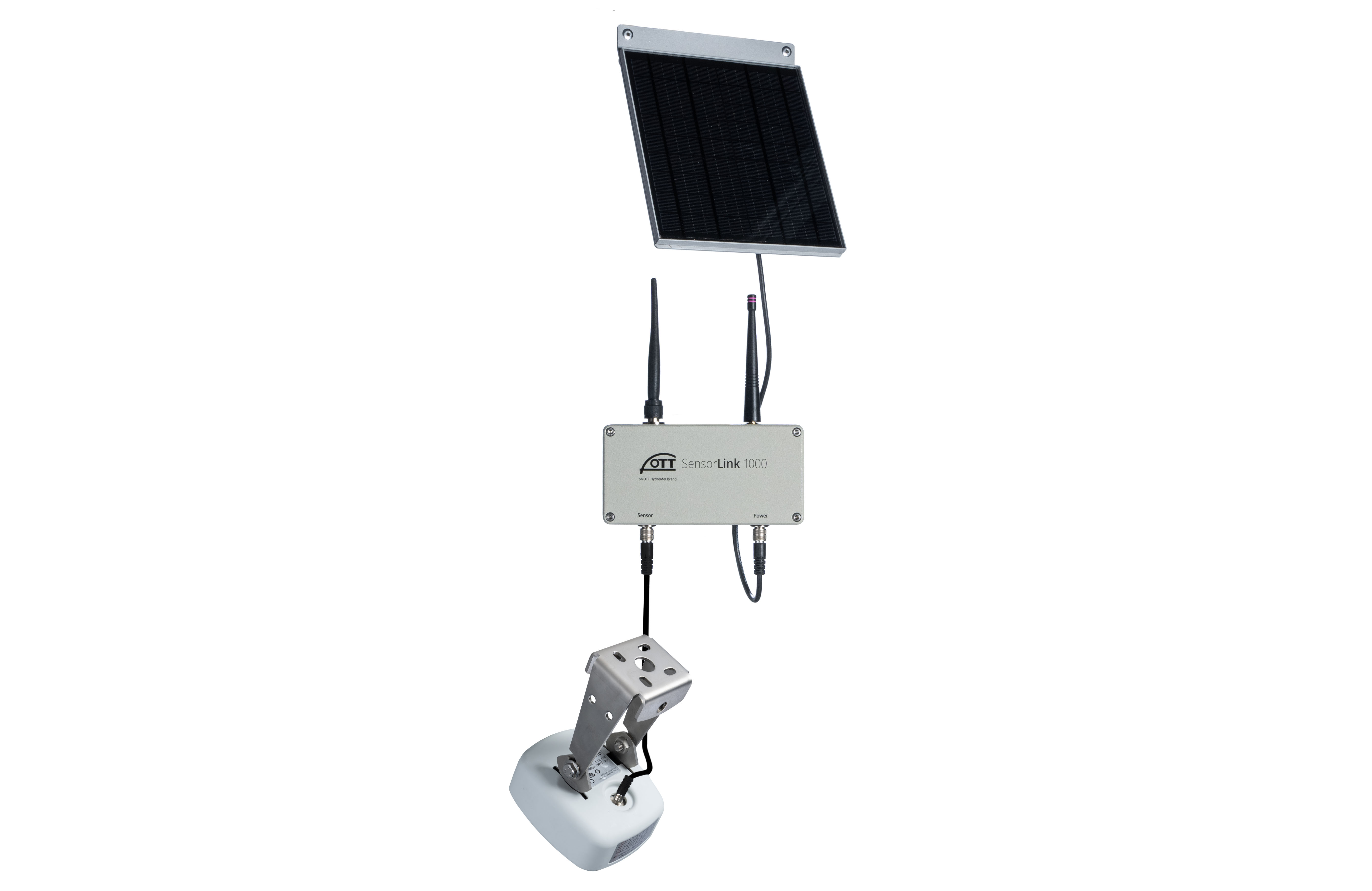

OTT Flood Monitoring System
Integrated flood monitoring and stream gauging solution
The OTT FMS integrates the OTT SensorLink 1000 with the OTT RLS 500 offering reliable, easy-to-install, and low-maintenance water level measurements.
- Surface water Water quantity Flood monitoring Tide monitoring Storm water Rain retention basins Drought monitoring
- Frequency-modulated continuous wave (FMCW) radar
- Water level or depth to water
- Accuracy, Reliability, Flexibility, Usability
- 0 … 30 m; distance to water
- ±2 mm
- Yes

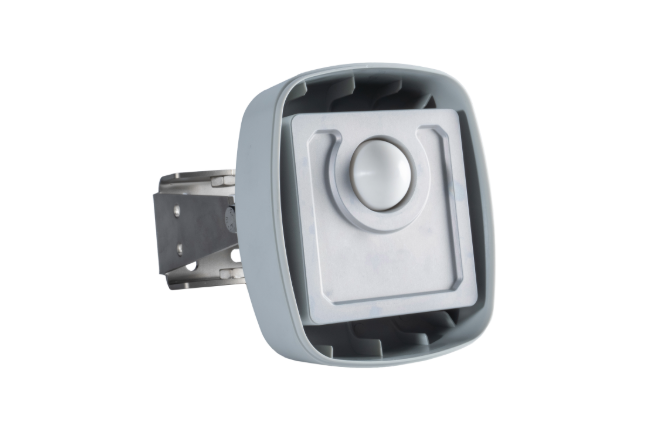

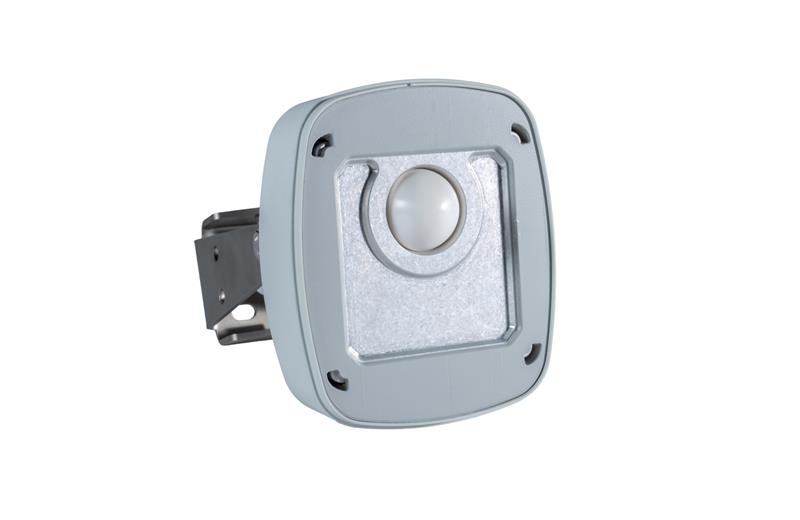

OTT RLS 500 Smart Radar Level Sensor
Reliable non-contact water level measurements
The OTT RLS 500 is a next generation radar level sensor designed for reliable water level measurement.
- Eaux de surface
- Frequency-modulated continuous wave (FMCW) radar
- Water level or depth to water
- 80 GHz radar frequency for unmatched accuracy
- 0 … 30 m; distance to water
- ±2 mm ; Meets USGS OSW Requirements for Accuracy
- 1
- SDI-12 and RS485 (SDI-12 v1.4 and Modbus RTU)

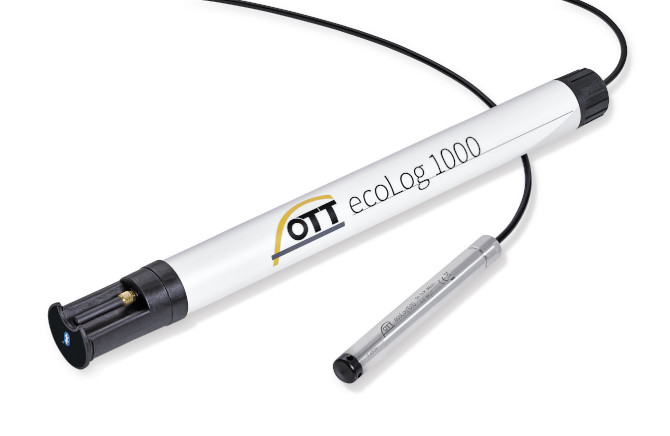

OTT ecoLog 1000 Water Level Logger
Self-contained, robust surface and groundwater level logger for measuring water level, temperature, and conductivity.
The OTT ecoLog 1000 is a self-contained groundwater level logger for measuring water level, temperature, and conductivity, providing reliable and accurate data with integrated mobile communication.
- Eaux de surface Débitmétrie
- Vented pressure cell
- Water level/pressure, water temperature, conductivity (optional)
- Integrated cellular modem (4G / 2G) EU-MEA or IoT LTE-M (CAT M1), Bluetooth Low Energy (BLE), operation via APP, Lithium Powerpack with plug, exact battery level indicator, service life > 10 years, IP data transmission, cable can be shortened on site
- 0 … 4, 10, 20, 40, and 100 m
- ± 0.05 % FS
- Ja

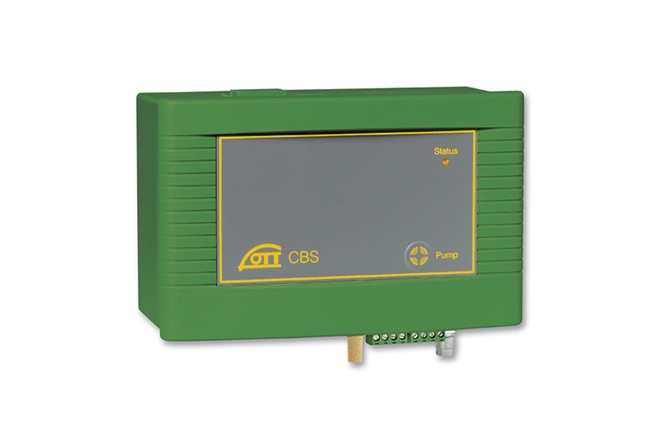

OTT CBS - Compact Bubbler Sensor
Non-contact, bubbler sensor for longterm surface water level monitoring
The OTT CBS is a compact, accurate, and low power bubbler sensor for surface or groundwater level monitoring.
- Eaux de surface Débitmétrie
- Bubbler-in
- Drift-free water level measurement - no pressure sensor or electronics in the water
- 0 to 15 m or 0 to 30 m
- ± 3 mm (high accuracy version); ± 5 mm (standard and 30 meter versions)
- 1
- SDI-12, RS-485 (using SDI-12), or 4 ...20 mA

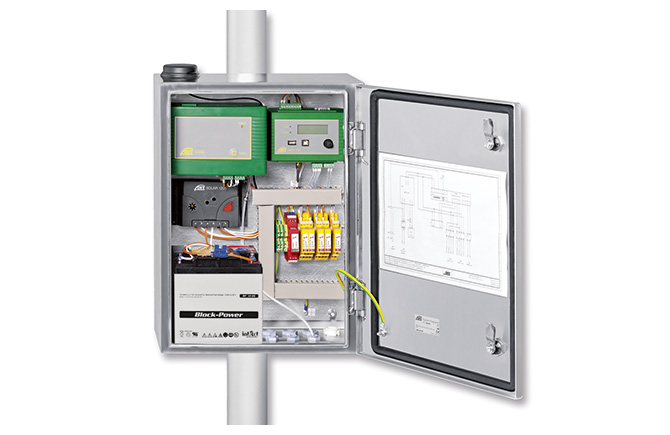

OTT HydroSystems
Complete hydrological gauging stations with telemetry
OTT HydroSystems allow hydrological measuring stations to be set up using only a few manual operations. The completely fitted system cabinets include components for power supply and everything that is needed for storing and transmitting measured data.
- Turn-key solutions for stand-alone measuring stations
- Gauging station, Pole mount
- Battery, Solar
- Cellular, Satellite (GOES/Meteosat)

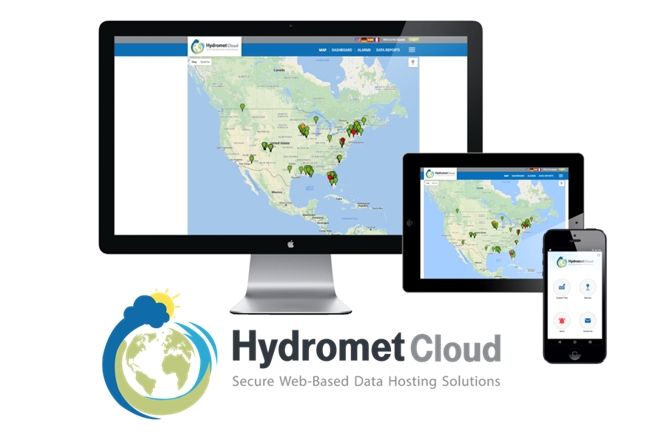

OTT Hydromet Cloud
Streamlined Data Management Across All Devices
Hydromet Cloud provides secure real-time data access from almost anywhere in the world via HydrometCloud.com and the Hydromet Cloud Mobile App
- Hydrology, Meteorology
- Web interface, iOS and Android Mobile Apps
- Web-based data management and alerts, available across all mobile devices!
|
|
